The RX Series Indoor Die-cast Slim LED Display is engineered for ultra-slim installations where both aesthetics and performance are equally important. It has a slim, lightweight design making it perfect for premium retail spaces, exhibitions, and for luxury interiors.

Key Features

• Cable-free modules with hub
• Ultra-slim die-cast aluminium cabinet
• Lightweight structure for easy installation
• Optional fast-lock system for seamless assembly
• High refresh rate with a superior visual output
• Front and rear maintenance support
• High contrast ratio with a wide viewing angle
• Energy-efficient and stable performance

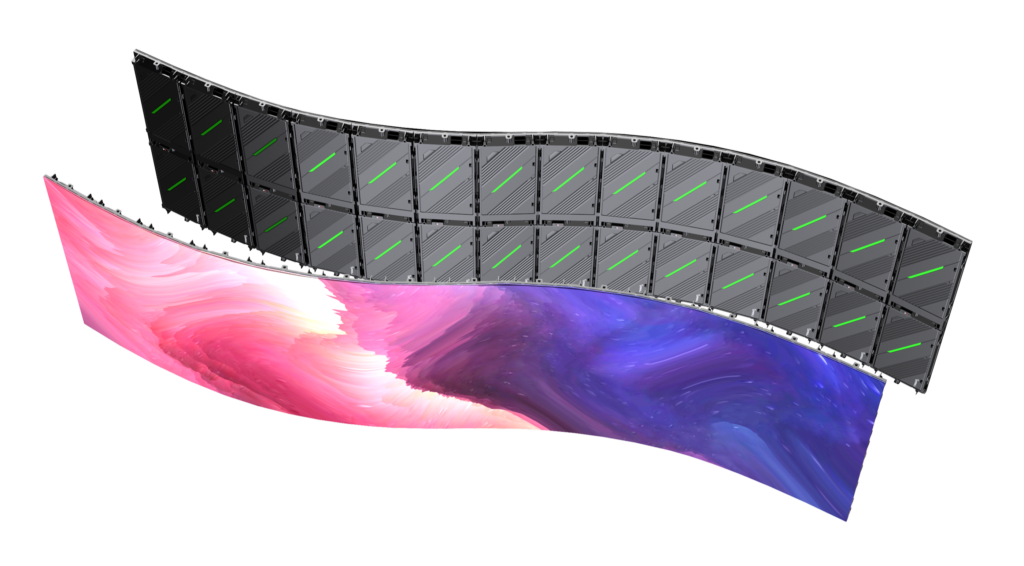

• Allows you to join multiple creative installations

Technical Specifications

• Pixel Pitch Options: P1.9 / P2.5 / P2.9 / P3.9 / P4.8
• Cabinet Sizes: 500×500 mm / 500×250 mm / 500×750 mm / 500×1000 / 500×250 mm
• Cabinet Material: Die-cast Aluminium
• Brightness: Up to 900 cd/m²
• Refresh Rate: ≥3840 Hz
• Viewing Angle: 155° / 155°
• Contrast Ratio: 5000:1
• Maintenance: Front & Rear
• Protection Rating: IP40
• Video Support: 2K HD / 4K UHD
• Operating Temperature: -10°C to +45°C
• Life Span: 100,000 Hours

Why Choose RX Series Indoor Die-cast Slim LED Display?

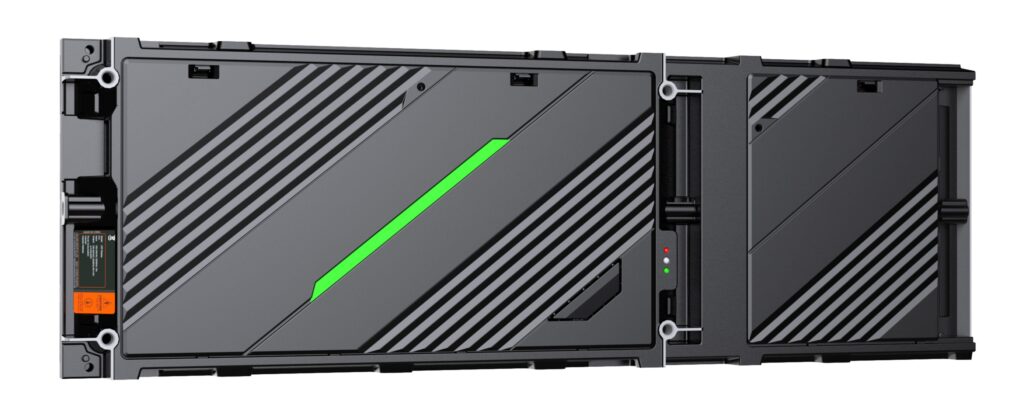

Ultra-Slim and Lightweight Engineering

The RX Series is engineered for premium environments, aesthetics are crucial, featuring an ultra-slim die-cast aluminium profile.

Superior Visual Output

High refresh rate of ≥3840 Hz, eliminating flicker, ensuring flawless performance for television studios and high-end digital media.

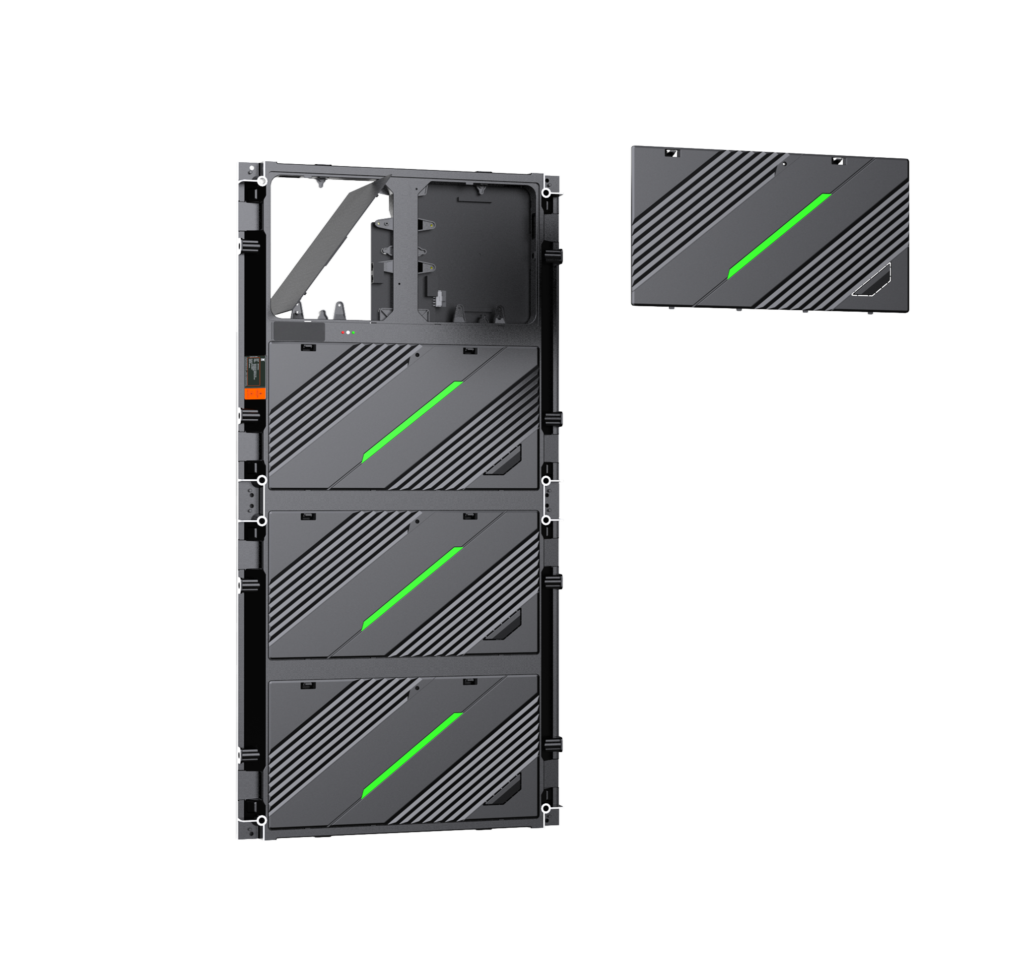

Dual Maintenance Support

Designed with maximum operational flexibility in mind, the RX Series supports front maintenance for convenient, hassle-free servicing.

Rapid and Seamless Assembly

Equipped with an optional fast-lock system, the precision-molded cabinets snap together quickly, providing perfect physical alignment and a smooth, gap-free display surface.

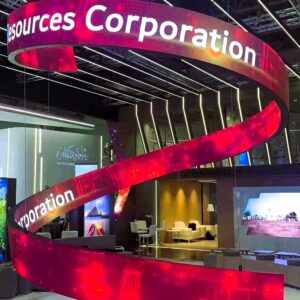

Best Places to Install the RX Series LED Displays

The RX Series is ideal for:

• Premium retail spaces
• Conference halls and auditoriums
• Exhibition spaces and trade shows
• Luxury residential and commercial interiors
• High-end event venues
• Digital art galleries

Benefits of the RX Series LED Displays for Businesses

Cable-free Modules

Cable free modules reduce wiring complexity, improves reliability, reduces data loss and makes maintenance faster and easier.

Enhance your Visual Engagement

The RX series features a high contrast ratio of 5000:1 which when combined with a high brightness of up to 900 cd/m² brightness, ensures that content instantly captures customer attention.

Streamlined Installation and Maintenance

The lightweight aluminium structure and quick-assembly fast locks significantly lower labor time, transport costs, and structural engineering demands.

Adapts to Any Canvas

The ability to easily splice varying cabinet sizes allows businesses to build tailored, creative installations that match their unique branding.

Long-Term Operational Stability

An energy-efficient design paired with high-grade components guarantees a 100,000-hour operational lifespan with minimal power consumption.

Frequently Asked Questions (FAQs) About RX Series – Indoor Die-cast Slim LED Display

How do cable-free modules work?

These modules connect directly to a hub card mounted inside the LED cabinet, eliminating ribbon cables between the module and receiving card. This reduces wiring complexity, improves reliability, reduces data loss and makes maintenance faster and easier.

What makes the RX Series the best choice for luxury interiors?

The RX Series is engineered specifically for spaces where aesthetics are just as important as performance. It features an ultra-slim die-cast aluminium cabinet that integrates elegantly with premium retail spaces, high-end galleries, and luxury lobbies.

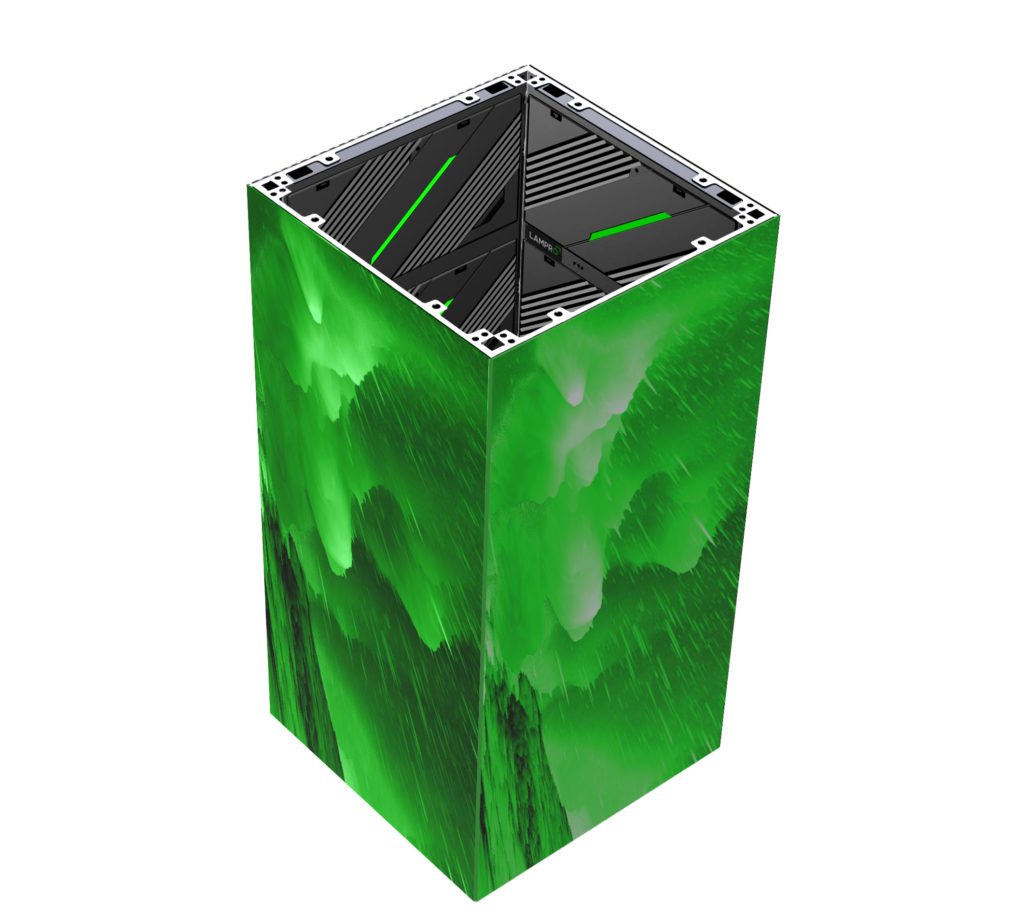

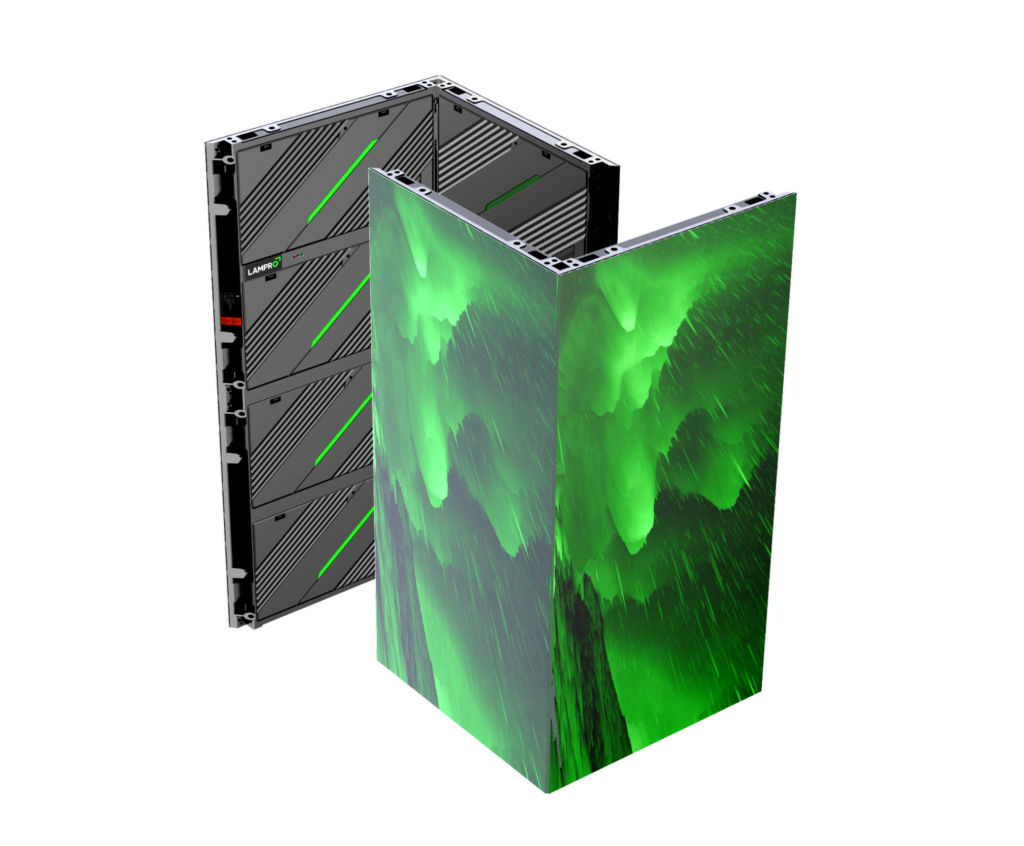

Can I build custom or creative LED video walls with this system?

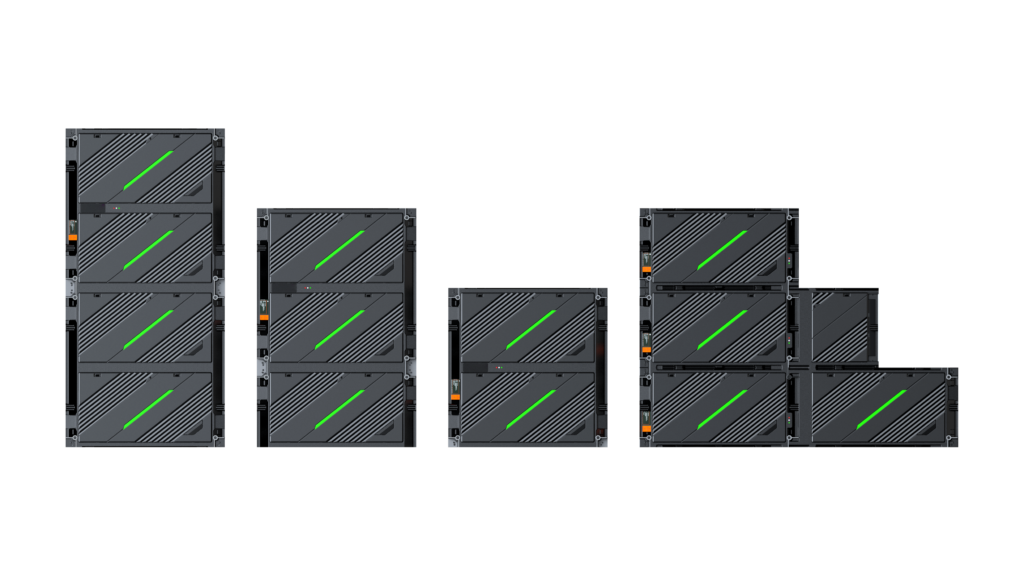

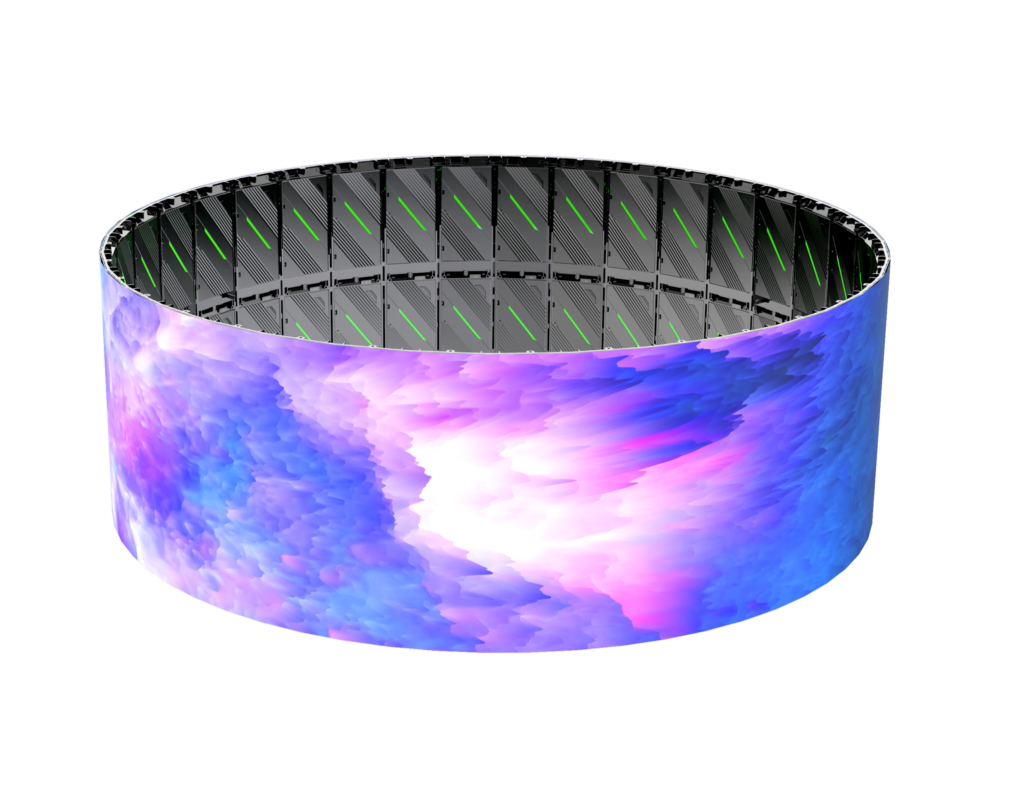

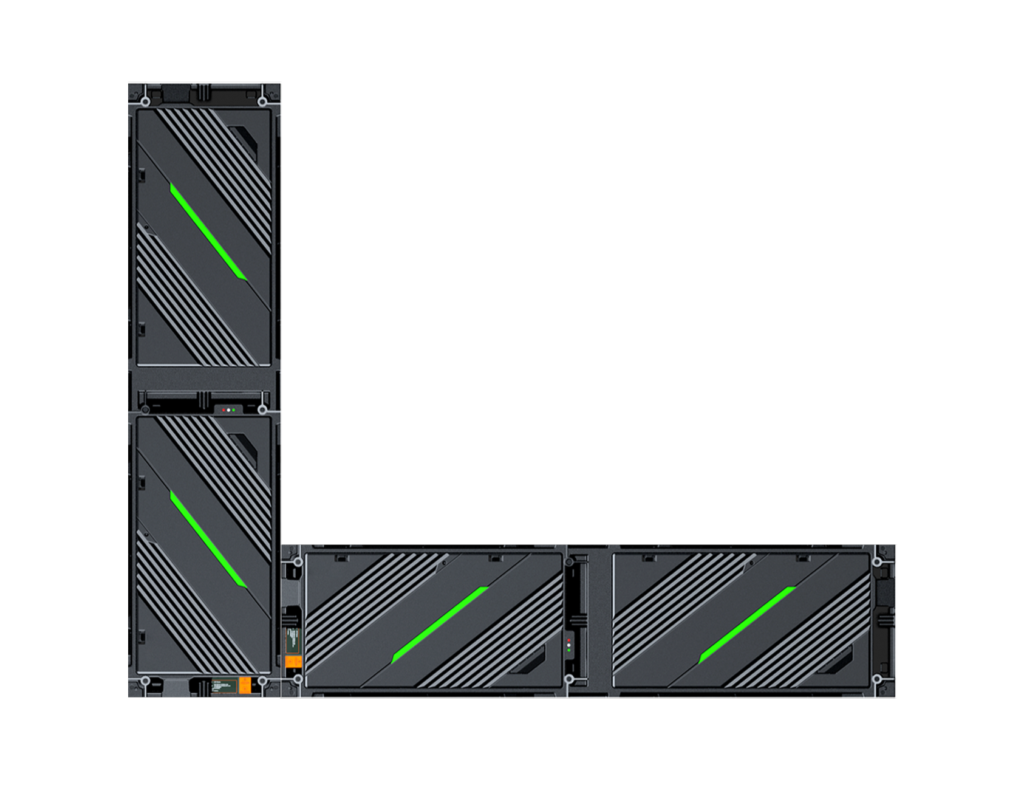

Of course. The RX Series supports highly creative installations by offering a versatile range of cabinet sizes such as from compact 500×250 mm modules up to tall 500×1000 mm panels; allowing you to design staggered, irregular, or perfectly tailored visual centerpieces.

How does this slim LED screen perform in brightly lit indoor environments?

It completely overpowers ambient glare. While many indoor screens wash out in sunlit areas, the RX Series pushes a superior indoor brightness of up to 900 cd/m². This ensures your digital content remains vibrant and commanding, even in glass-front retail stores or brightly lit exhibition halls.

How quickly can the RX Series be deployed for temporary exhibitions?

To support the fast-paced nature of high-end events and tradeshows, the lightweight structure is available with an optional fast-lock system. This allows production teams to achieve a completely seamless assembly in record time, dramatically reducing installation labor and teardown phases.

Will the visual quality degrade if customers view it from extreme angles?

No. The display is designed to captivate audiences from almost anywhere in the room. It features an expansive 155° horizontal and vertical viewing angle paired with a striking 5000:1 contrast ratio, guaranteeing that colors remain rich and deep whether viewed head-on or from the periphery of a showroom.

Does this premium indoor display consume a lot of power?

High performance does not equate to high waste. The RX Series is engineered for highly energy-efficient operation. It delivers stable performance and striking brightness while minimizing power draw and heat output, making it highly sustainable for continuous, long-duration operation.
