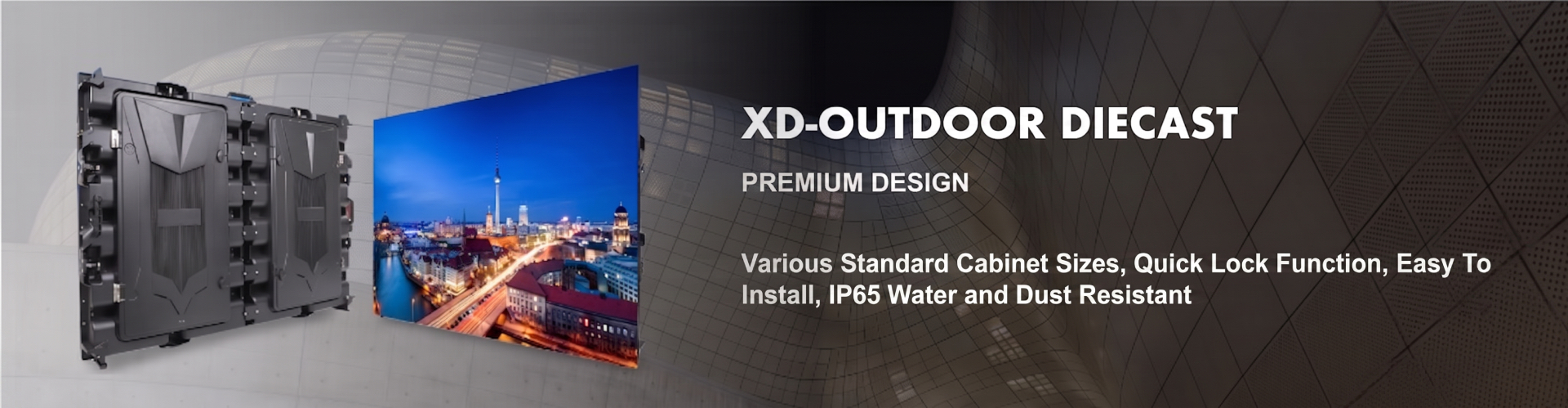

XD-OUTDOOR DIECAST PREMIUM DESIGN

 Commercial LED Display Billboard

The LED display features a 960mm x 960mm cabinet design made from strong and durable magnesium alloy. This versatile display is suitable for both indoor and outdoor use, including fixed installations.

Rapid Assembly

The cabinet features two quick locks on the top and left side, facilitating rapid installation.

Removable Back Cover

The XD Outdoor Die-Cast LED display features a compact structure with a back cover that can be easily opened for maintenance.

Rapid Heat Dissipation

The LED display features four wing fans on the back cover to ensure rapid heat dissipation.

Concealed Wiring Design

The cabinet’s power and signal lines connect through designated holes on the side of the cabinet.

IP65 Waterproof

With an IP65 rating, the fully sealed cabinet is weatherproof, dustproof, and damp-proof, elevating the LED display’s ingress protection to a new standard.

Exceptional Display Quality

In commercial display applications, RLDR high brightness and high refresh rate bring users more realistic and vivid visual effects.

All-Weather Outdoor Performance

With Rush LED’s unique protection technology, the display operates reliably in any weather conditions. It offers guaranteed high protection, durability, stability, and resistance to ultraviolet light.

Wide Viewing Angle

The viewing angle extends up to 140° both vertically and horizontally, providing an expansive field of view. This ultra-wide angle ensures the largest screen viewing area, delivering clear and natural images from all directions.

Download Manual

Rush Productions XD Series Outdoor Die-Cast LED Display Solutions

The XD Series takes outdoor fixed installations to the next level by combining die-cast structural integrity with a 5000:1 contrast ratio. This series provides ultra-deep black levels and punchy highlights to enhance commercial video content significantly. The XD series is lightweight and yet structural, eliminating alignment gaps, giving you a completely seamless view of the content.

Technical Specifications

  • Pixel Pitch Options:2.5mm, 3.076mm, 4mm, 5mm
  • Material:Aluminium Die-Cast
  • Size:W960 × H960 × D105 (mm)
  • Weight:22.5 kg per cabinet
  • Brightness:5000 Up to 7000 Nits
  • Refresh Rate:4200 Hz up to 7680 Hz
  • Viewing Angle:Horizontal: 140° | Vertical: Looking up 110°–140°, Looking down 40°
  • Contrast Ratio:5000:1
  • Maintenance:Fast installation lock alignment with easy modular component swap
  • Protection Rating:High-grade outdoor waterproof and dust-tight performance
  • Video Support:2K HD, 4K UHD
  • Operating Temperature:-20°C to 50°C (Storage: -10°C to 30°C; 10–65% RH)
  • Life Span:100,000 Hours

Applications

  • Premium retail storefront video walls
  • Corporate exterior branding
  • High-end outdoor entertainment and hospitality zones
  • Structural architectural mounting designs

Why Choose XD Series Outdoor Die-Cast LED Display?

The XD series has a significant 5000:1 contrast ratio. The die-cast cabinet ensures zero or standard wear over time, perfect for long-term usage.

Frequently Asked Questions (FAQs) About XD – Outdoor Die-Cast LED Display

How does the XD Series achieve a completely seamless outdoor video wall?

The XD Series is constructed using highly precise Aluminium Die-Cast cabinets. This premium structural integrity eliminates the alignment gaps common in standard displays, ensuring a completely seamless, unified view of your digital content across massive architectural canvases.

What makes this display superior for high-end commercial video content?

It is all about the depth of the image. The XD Series boasts an exceptional contrast ratio of 5000:1 . This delivers ultra-deep black levels and punchy, vibrant highlights, significantly enhancing the cinematic quality of premium brand advertisements.

Is the die-cast structure too heavy for complex architectural mounting?

Not at all. Despite its rigid structural integrity, the XD Series is remarkably lightweight. Each 960x960mm cabinet weighs just 22.5 kg, allowing designers and architects to integrate these premium displays into demanding structural mounting designs without overwhelming the building’s load capacity.

How do installation teams manage alignment and maintenance?

The XD Series is designed for precision and speed. It features a fast-installation lock alignment system that perfectly snaps the die-cast cabinets together. Furthermore, it supports an easy modular component swap, allowing technicians to replace parts swiftly without disrupting the entire video wall.

Is the XD Series resilient enough for unprotected outdoor exposure?

Yes. It features high-grade outdoor waterproof and dust-tight performance, keeping the internal electronics perfectly safe. It is designed to operate flawlessly in extreme temperatures ranging from -20°C to 50°C, ensuring unbroken performance in virtually any climate.
